MACM – AIR CLASSIFYING MILL
Precise. Fine. Consistent.
Tight Particle Size Control
Built-In Classifier Loop
Reduced Overgrinding
Dual Functionality
Food-Grade Design
5 – 10,000
kg/hr Capacity Range
5 – 150
Micron Typical Output
D97 Control
Particle Size Accuracy
Stainless / MS
Construction
ATEX / Non-ATEX
Options Available

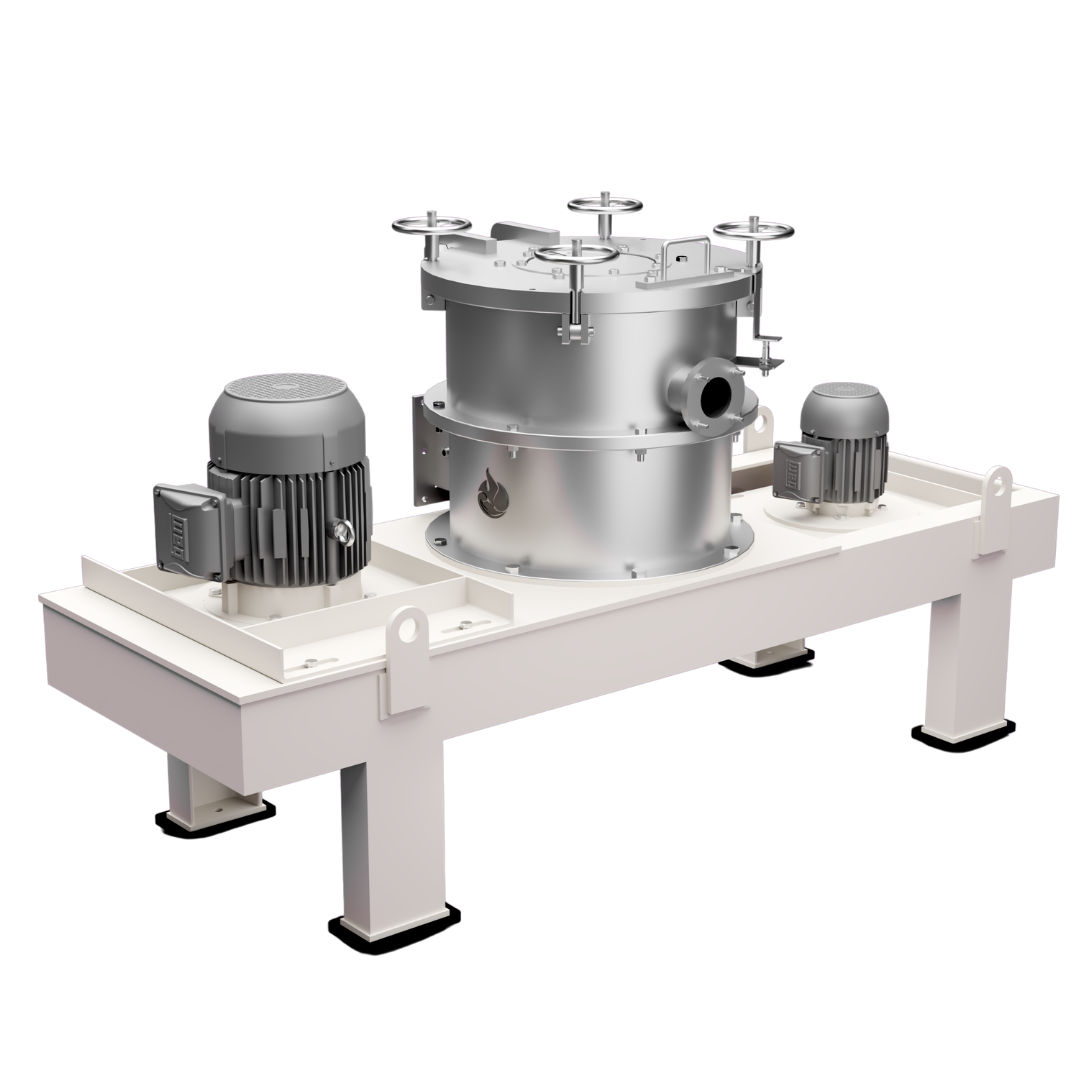

The MACM Air Classifying Mill uses impact grinding combined with an integrated dynamic air classifier to achieve precise particle size control. Material is ground by impact, then immediately classified — oversize particles are returned for regrinding while on-spec fines are discharged.
This closed-loop design eliminates the need for a separate classifier unit, reduces floor footprint and delivers consistently tighter particle size distribution than standard hammer milling — particularly for fine and ultrafine applications.
- Integrated impact grinding and dynamic air classification in one unit
- Oversize particles continuously returned for regrinding
- Tight D90/D97 particle size distribution achievable
- Significantly reduced overgrinding vs standard hammer milling
- Compact design — grinding and classification in single footprint
- Suitable for heat-sensitive powders with low-energy grinding option
Use your mouse to move or zoom in the model
- Particle size range: 5-150 microns (adjustable)
- Tight PSD with narrow d97/d50 ratio
- Temperature control: ±5°C precision
- Inert gas capability for sensitive materials
- cGMP compliant construction
- Validated cleaning systems (CIP/WIP)
- Real-time classifier tuning
- SS316L construction available
- ATEX compliance options
- Complete documentation support
| Model | Capacity (kg/hr) | Classifier Motor (kW) | Dimensions L×W×H (m) | Feed Options |
|---|---|---|---|---|
| MHAM-500-50 | 100 – 500 | 0.55-7.5 | 2×0.64×1.1 | Gravity/Pneumatic/Screw |
| MHAM-1000-90 | 500 – 1000 | 9.3-15 | 2.5×1×1.5 | Gravity/Pneumatic/Screw |
| MHAM-2000-150 | 1000 – 2000 | 18.5-37 | 2.85×1.2×1.73 | Gravity/Pneumatic/Screw |
| MHAM-4000-300 | 2000 – 4000 | 45-75 | 3.7×1.5×1.3 | Gravity/Pneumatic/Screw |
The MACM is the right choice when tight particle size distribution matters more than raw throughput. Fine spice powders, sub-100 µm nutraceuticals, pigments and pharma excipients all benefit from the classifier’s oversize-return loop.
- Fine chilli, turmeric and coriander powders — sub-100 µm export grade
- Sugar and salt to ultra-fine specifications
- Nutraceutical and health supplement powders requiring D90 control
- Pharmaceutical excipients and API grinding
- Cosmetic pigments and colour powders
- Specialty chemical powders where size distribution is critical
Air Classifying Mill Catalogue
Full technical specifications, dimensions and ordering information.
MACM Datasheet
Full technical specifications, dimensions and ordering information.
The MACM handles materials where fine and consistent particle size distribution is the primary output requirement.
Fine Chilli
Turmeric
Sugar
Pharma
Nutraceuticals
Pigments
Fine Flour
View All Materials
These conditions indicate the MACM Air Classifying Mill is the right starting point. Submit your material for a full review before final selection.
- Tight particle size distribution (D90/D97) is required
- Standard hammer milling produces too many oversize or fine particles
- You need sub-100 µm output consistently
- Grinding and classification in a single compact unit is preferred
Not sure if MACM is right for your material?
Share your material details and our process experts will guide you to the right machine and process route.
Frequently Asked Questions
Continuous airflow and independent classifier control limit thermal exposure while delivering tight PSDs for aroma-rich spices, cocoa, APIs, and botanical actives. Temperature monitoring and controlled cooling ensure protection of volatile compounds.
Yes. MACM provides fine PSDs with d97/d50 tuning, hygienic construction (SS316L options), and documentation aligned with cGMP. Complete validation support helps meet pharmaceutical regulatory requirements.
Available inerting and ATEX-aligned configurations support oxygen-sensitive materials and combustible dust environments. Custom engineering ensures safe operation with hazardous materials.
MACM integrates grinding and classification, reducing footprint, simplifying controls, and stabilizing cut-point consistency. Eliminates inter-equipment transfer losses and reduces capital requirements by 25-30%.
Absolutely—MACM connects seamlessly with pneumatic conveying, cyclones/filters, sifters, blenders, and packing lines for a complete production system upgrade without major facility modification.
