MillNest Cutting Technology – Precision Solutions for Fibrous Materials

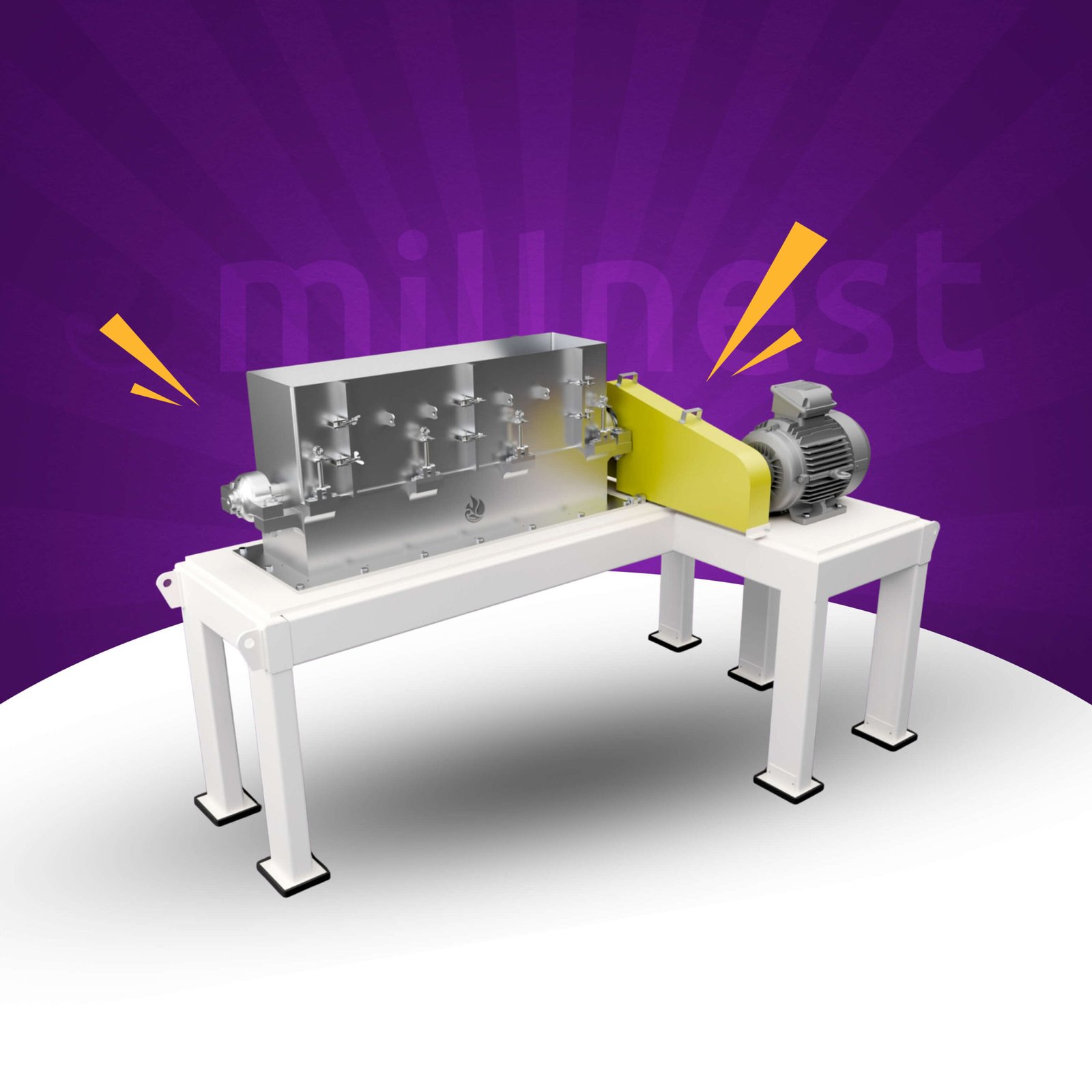

Industrial Cutter Mill - Precision Cutting for Fibrous & Heat-Sensitive Materials
MillNest cutter mills represent the pinnacle of cutting technology for materials requiring gentle, controlled size reduction. Our precision-engineered cutting systems excel where conventional impact mills fail, delivering clean cuts through fibrous, elastic, and temperature-sensitive materials while preserving product integrity and volatile compounds essential to product value.
Unlike impact mills that pulverize material through brute force, our cutter mills employ precision scissor-action technology that progressively cuts materials with surgical precision, producing uniform particle populations ideal for pharmaceutical, food, and botanical applications.
Why choose us
Why Choose MillNest Cutter Mills?
Scissor-Action Technology
Precision-ground rotor knives operating against stationary bed knives with controlled clearances create progressive cutting action producing clean, defined cuts rather than pulverization.
Minimal Heat Generation
Cutting action preserves volatile compounds ideal for essential oil retention in spice processing and prevents thermal degradation of sensitive materials.
Tool Steel Construction
Premium heat-treated tool steel knives with micrometer-style external clearance adjustment ensure consistent performance and extended service life.
Helical Knife Arrangement
Advanced knife geometry enables smooth operation, reversible operation for extended knife life, and optimal material flow patterns.
Hygienic Design
Food and pharmaceutical grade construction with smooth welds, radiused corners, and complete accessibility for thorough cleaning and validation.
Safety Compliance
Safety interlocked covers and emergency stops protect operators. Complete CE marking and regulatory compliance support.
Specifications
Technical Specifications & Performance
| Model | Capacity (kg/hr) | Motor Power (kW) | Dimensions L×W×H (m) | Feed Options |
|---|---|---|---|---|
| MHAM-500-40 | 100 – 500 | 5.5 – 30 | 1.24 × 0.9 × 1.0 | Gravity/Pneumatic/Screw |
| MHAM-1000-90 | 500 – 1000 | 37 – 60 | 1.8 × 1.1 × 1.7 | Gravity/Pneumatic/Screw |
| MHAM-2000-150 | 1000 – 2000 | 75 – 110 | 1.8 × 1.3 × 1.8 | Gravity/Pneumatic/Screw |
| MHAM-4000-300 | 2000 – 4000 | 125 – 225 | 2.7×1.4×2.0 | Gravity/Pneumatic/Screw |
Working Principle & Process Flow
Key Technical Highlights
- Scissor-action cutting mechanism
- Tool steel knife construction
- Micrometer clearance adjustment
- Helical knife arrangement
- Reversible knife operation
- Variable speed control
- Stainless steel housing (optional)
- Complete safety interlocks
- Quick-access maintenance design
- Soundproofed enclosures available
Applications
Applications & Industry Solutions
Spice Processing Excellence
Process fibrous spices like cinnamon sticks, dried ginger, and bay leaves where impact mills struggle with fiber wrapping. Clean cutting action handles structural fibers efficiently while preserving aromatic compounds that distinguish premium spices in global markets.
Food Ingredient Manufacturing
Dehydrated vegetables, dried fruits, and tea processing benefit from controlled cutting action. Produces uniform particle populations ideal for powder formulations and beverage applications where particle consistency influences consumer experience.
Herbal & Botanical Processing
Raw botanical materials including roots, bark, stems, and dried leaves present fibrous structures perfectly suited for cutter mill technology. Preprocessing establishes consistent feed characteristics for downstream grinding and extraction operations.
Pharmaceutical Applications
Excipients and natural-origin pharmaceutical ingredients with fibrous structures utilize cutter mill processing with hygienic configurations meeting regulatory requirements and validation protocols.
Competitive Advantages
Operational Advantages & Product Quality Benefits
01
Superior Product Quality
Clean cutting preserves particle integrity, minimizes fines generation, maintains consistent particle shapes, and preserves temperature-sensitive volatiles. Result in premium products commanding market premiums and customer satisfaction.
02
Operational Excellence
Reduced maintenance compared to impact mills thanks to gentle cutting action. Quick-access design for cleaning and knife changes, variable speed operation for material optimization, and soundproofed enclosure options available.
Complete Solution
Integrated Equipment Ecosystem
Delumpers break initial agglomerates and lump conditioning for consistent feed characteristics to cutter mill.
Hammer mills for further size reduction, material handling conveyors, and quality control screening systems.
Vibratory feeders ensure consistent material flow. Pneumatic conveyors integrate with dust collection systems.
Screening and classification systems ensure particle uniformity. Material testing validates cutting performance.
Our Commitment
Expert Technical Support & Service
Comprehensive Consultation
Our material specialists evaluate your specific requirements, assess sample materials through cutting trials, and recommend optimal knife configurations and processing parameters for your unique application.
Installation & Optimization
Professional installation and commissioning support ensures proper system integration. Knife configuration optimization helps achieve desired particle characteristics and throughput rates.
Ongoing Support Services
Operator training and maintenance programs ensure optimal equipment performance. Genuine spare parts and knife resharpening services maximize equipment lifespan. Technical support helps troubleshoot processing challenges.
Optimize Your Fibrous Material Processing
Expert solutions for challenging cutting applications. Connect with our specialists for material assessment and custom recommendations.
